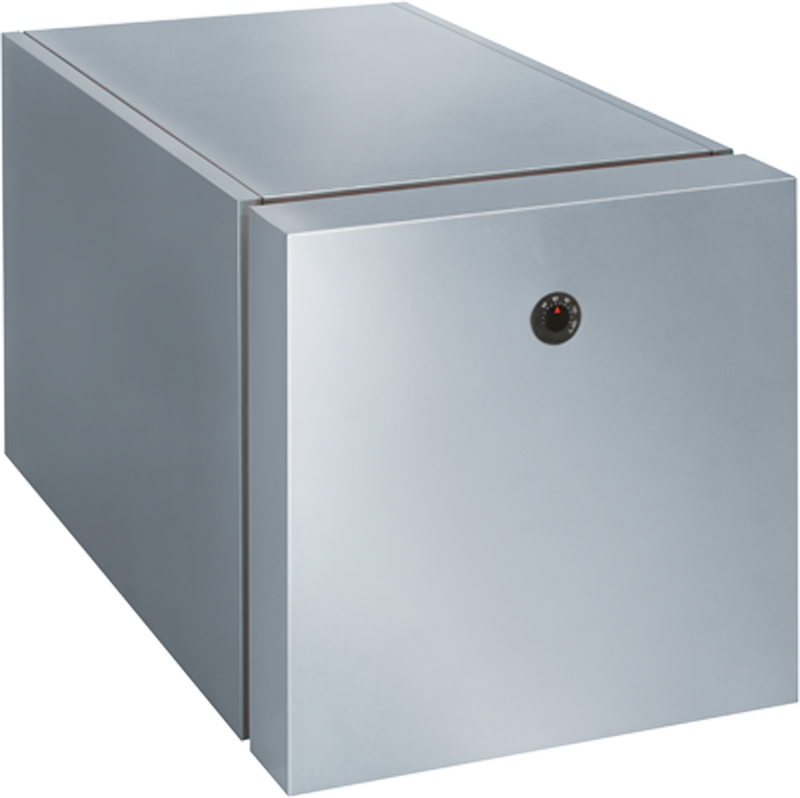

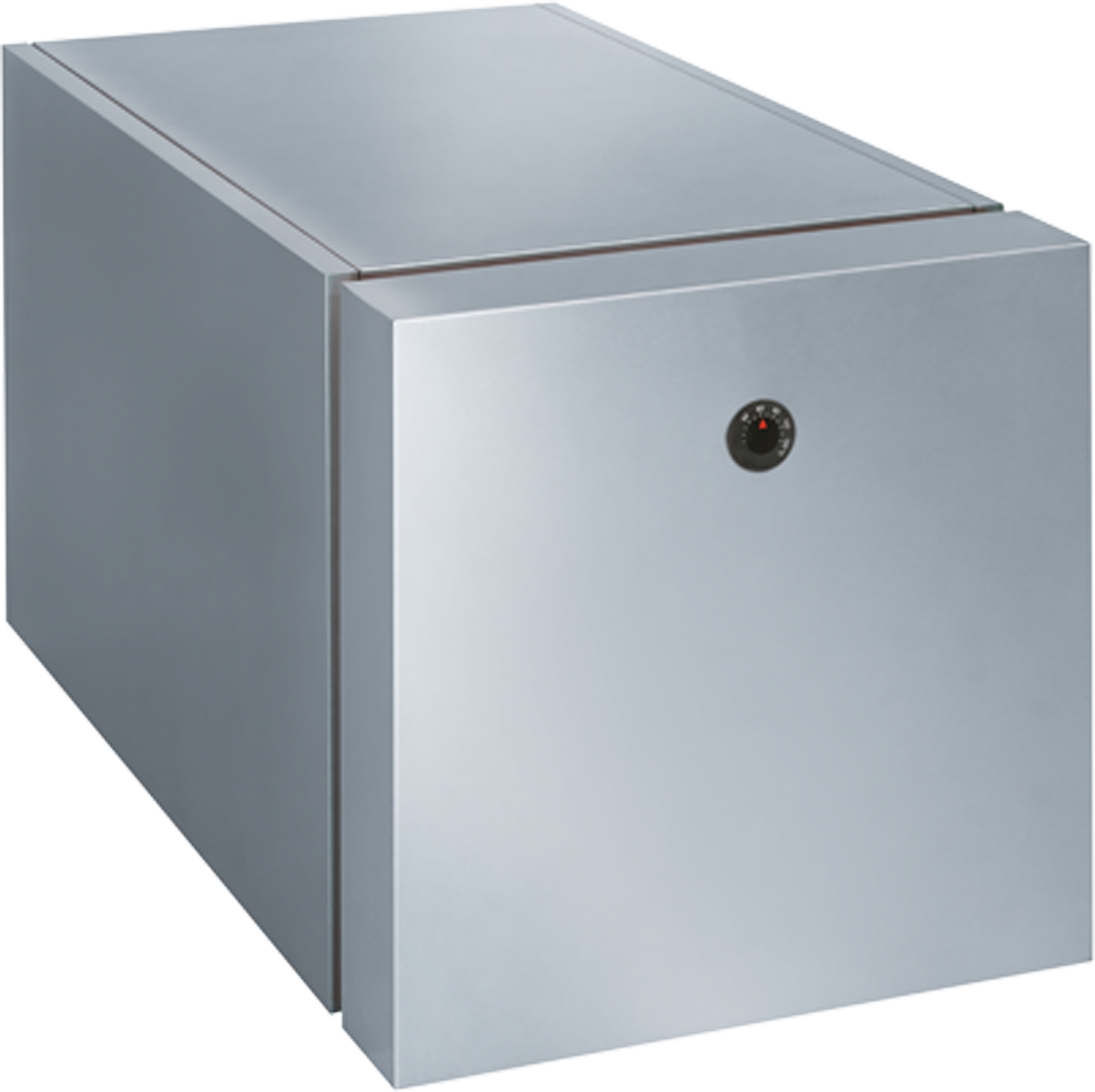

VIESSMANN Vitocell 300-H

Stainless steel storage water heater

Horizontal, hygienic DHW cylinder with a heating coil. For heating drinking water in connection with boilers, district heating and low-temperature heating systems. Built and registered according to EN 12897 and DIN 4753. Fulfills the requirements of the DVGW worksheet W 551. For heating systems according to EN 12828. Perm. Heating water flow temperatures up to 200 degrees C.

Permitted operating pressures:

• up to 25 bar on the heating water side
• Saturated steam up to 1 bar
• drinking water side up to 10 bar

Storage cell and heating coil corrosion-proof made of high-alloy stainless steel (material 1.4571). Version C according to DIN 1988-2, with cleaning and inspection opening at the front. DHW cylinder thermally insulated on all sides with PUR rigid foam. Casing made of sheet steel, coated with epoxy resin, color vito silver.
