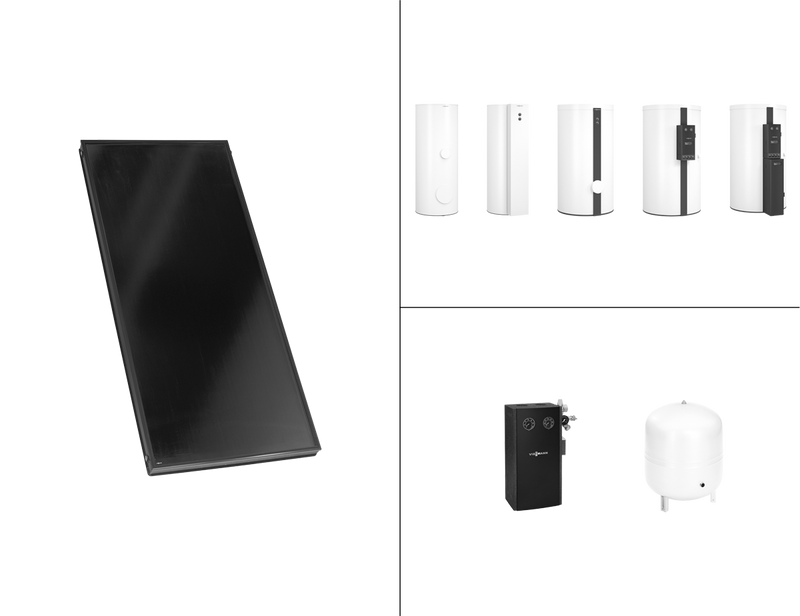

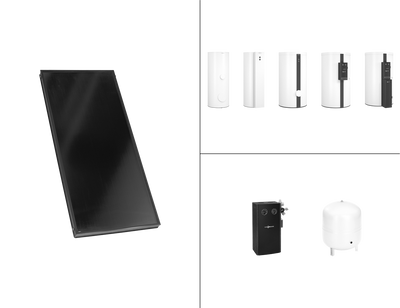

Package Vitosol 200-FM, 4x SV2F, HU Vitocell 140-E 750l, Vitotrans 353, SM1, vitopearlwhite
Package Vitosol 200-FM, 4x SV2F, HU
consisting of:
- 4 x ZK02453 Vitosol 200-FM, type SV2F (on-roof)
- 3 x 7248239 connecting tubes (2 pieces)
- 1 x 7248240 connection set on one side
- 1 x 7174993 thermowell set
- 1 x Z021880 Vitocell 140-E, type SEIC 750 l
- 1 x Z021905 Solar Divicon PS10 SM1A
- 1 x 7248243 membrane expansion vessel 40L 10bar
- 2 x 7159727 heat transfer medium Tyfocor-LS 25 liters
- 1 x Z021866 Vitotrans 353 PZSA 600/750/950l
-
VIESSMANN Vitosol 200-FM flat collector
with automatic temperature switch-off ThermProtect.
Frame dark blue
Flat-plate collector (vertical) for heating drinking water, heating and swimming pool water via a heat exchanger and for generating process heat. For pitched roof mounting and for free-standing mounting. Design features and design: High-performance collector, vertical design, consisting of a meander absorber with a highly selective, switching coating. Casing made from a circumferentially bent aluminum frame profile, side and rear thermal insulation made from melamine resin foam. Cover made of highly transparent and hail-resistant solar safety glass. Integrated piping for modular construction of collector arrays with up to 12 collectors.
Type | SV2F | |
Collector gross area | 2.51 | m² |
absorber surface | 2:31 | m² |
aperture area | 2.33 | m² |
Broad | 1,056 | mm |
Height | 2,380 | mm |
depth | 90 | mm |
weight | 39 | kg |
content liquid | 1.83 | l |
Performance values Working range of the collector | ||
Optical efficiency (absorber area) | 82.3 | % |
Heat loss coefficient k1 (absorber area) | 4,421 | W/m²K |
Heat loss coefficient k2 (absorber area) | 0.022 | W/m²K² |
Optical efficiency (gross area) | 75.7 | % |
Heat loss coefficient k1 gross area) | 4,069 | W/m²K |
Heat loss coefficient k2 (gross area) | 0.020 | W/m²K² |
Theoretical performance values over the entire temperature range | ||
Optical efficiency (absorber area) | 82.7 | % |
Heat loss coefficient k1 (absorber area) | 4,791 | W/m²K |
Heat loss coefficient k2 (absorber area) | 0.025 | W/m²K² |
Optical efficiency (gross area) | 76.1 | % |
Heat loss coefficient k1 gross area) | 4,410 | W/m²K |
Heat loss coefficient k2 (gross area) | 0.023 | W/m²K² |
Permitted operating pressure in the collector | 6 | bar |
Max standstill temperature | 145 | °C |
Technical data for determining the energy efficiency class (ErP label) | ||
solar panel | ||
aperture area | 2.33 | m² |
collector efficiency | 59 | % |
Collector efficiency (optical) | 82 | % |
Linear heat transfer coefficient | 4.75 | W/(m²K) |
Square heat transfer coefficient | 0.024 | W/(m²K²) |
angle correction factor | 0.89 |
-
Connecting tubes (1 pair)
Made from flexible corrugated stainless steel tubing with brass fitting ends and O-rings.
-
connection set
For a collector array in a row.
-
thermowell set
With immersion sleeve and screw fittings.
-
VIESSMANN Vitocell 140-E
Type | SEIC |
Heating water buffer cylinder for use in heating systems with solar systems, heat pumps or solid fuel boilers.
Built according to EN 12897 and DIN 4753. For heating systems according to EN 12828.
Scope of delivery/Equipment
- Steel heating water buffer cylinder with separately packaged thermal insulation
- Polystyrene sheath
- adjustable feet
- Built-in heating coil for connection to solar panels
- 7 flow and return connections (top, middle, bottom): R 2
- 5 clamping systems on the storage jacket for immersion temperature sensors/temperature controllers/thermometers
- Connection for the installation of an electric heating element
- solar vent
Suitable for up to 4 thermometers to record the temperature stratification.
Color | vitopearlwhite | |
memory contents | ||
memory content | 750 | l |
heating water | 738 | l |
Heat exchanger solar | 12 | l |
Heat exchanger solar heating surface | 1.8 | m² |
Permissible temperatures | ||
heating water supply | 110 | °C |
solar flow | 140 | °C |
Permissible operating pressure | ||
heating water side | 3 | bar |
solar side | 10 | bar |
Dimensions with thermal insulation | ||
length | 1064 | mm |
Broad | 1119 | mm |
Height | 1900 | mm |
weight with thermal insulation | 159 | kg |
insertion dimensions | ||
length | 790 | mm |
tilt dimension | 1890 | mm |
Technical data for determining the energy efficiency class (ErP label) | ||
Heating water buffer cylinder | ||
energy efficiency class | - | |
holding losses | 93.8 | W |
contents | 750 | l |
-
Solar Divicon with connection set
Completely equipped set for connecting the solar circuit to the solar heat exchanger of the heating water buffer cylinder.
scope of delivery
- Solar-Divicon, type PS10 with speed-controlled high-efficiency circulation pump
- Prefabricated piping with connection fittings for mounting on the Vitocell
-
expansion vessel (for heat transfer medium)
Diaphragm pressure expansion tank with a pre-pressure of 4.5 bar, color white, with shut-off valve and fastening.
-
Heat transfer medium "Tyfocor-LS"
25 liters in a disposable container. Ready mix down to -28 degrees C.
"Tyfocor LS" can be mixed with "Tyfocor G-LS".
-
VIESSMANN Vitotrans 353
Type | PZSA |
Fresh water module for convenient and hygienic heating of drinking water according to the flow heater principle.
Scope of delivery/Equipment
- Completely prefabricated, compact station for installation on the heating water buffer cylinder
- circulation pump
- Integrated, pre-wired and preset control to set the desired hot water temperature
- Large, highly efficient plate heat exchanger (brazed copper) for a low return temperature
- Return distribution set for temperature-dependent stratification of the return in the heating water buffer cylinder using the temperature control function
- Flow rate sensor for exact flow measurement in the drinking water circuit
- Speed-controlled high-efficiency circulation pump for the primary circuit
- Shut-off valves with integrated non-return valve
- Prefabricated mounting bracket, pipes and connectors for connection to the heating water buffer cylinder
Tap capacity up to | 25 | l/min |
Permissible operating pressure | ||
Primary | 10 | bar |
Secondary | 10 | bar |
Primary | 95 | °C |
Secondary | 95 | °C |
connections | ||
Primary | g 1 | |
secondary/circulation | g 1 | |
Dimensions with thermal insulation | ||
length | 346 | mm |
Broad | 250 | mm |
Height | 943 | mm |
weight with thermal insulation | 24 | kg |
Type of collector | flat collector |
Design collector | vertical |
Energy efficiency class hot water tank | B |
Mounting type collector | roof |
Product Type Sales | SV2F |
energy sources | Solar |
Package ID | package |
